Load Body Length
Displacement
Engine Type
Max Output
Max Torque
Cab to Chassis End
Diesel
Manual
hp (kW) @ rpm
Nm (kW) @ rpm
5560 mm
7790 cc
6 Cylinder, Common Rail Turbo-Intercooler
280 hp (206 kW) @ 2,400 rpm
882 hp (90 kW) @ 1,450 rpm
F-Series trucks hold all the aces in the heavy commercial vehicle segment providing class leading economy, safety and environmental care in a package that is tailor made to meet the demands of operators. Providing the right options to meet the most demanding requirements from freight carriers and compactors to medium haul operations and off-road applications. Every businessman wants to optimize payload per trip and What better way to do this with a rigid chassis and optimal wheelbase dimensions in the 7th Generation F series trucks. As they cover the distance, they are engineered to handle heavy loads and a broad variety of rear bodies.

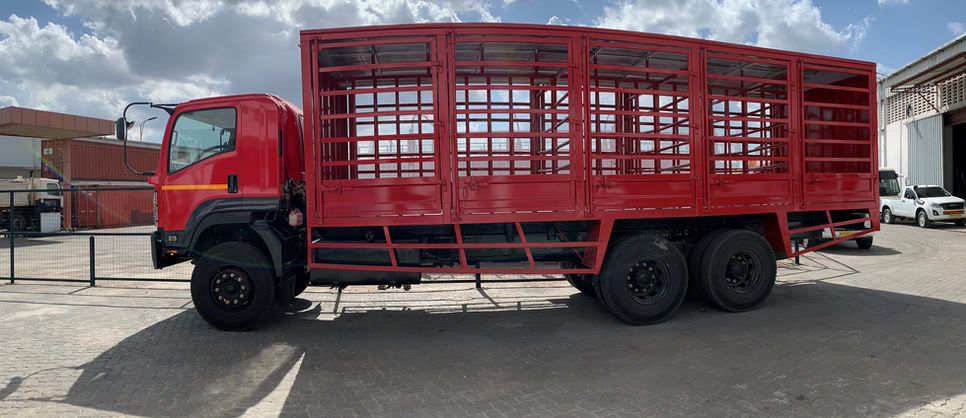

ISUZU FVZ SPECIFICATIONS
Fuel Tank Capacity (litres)
370
Gross Weight
26000kg
Overall Height
2950 mm
Overall Length
9750 mm
Payload
18,000 kg
Overall Width
2400 mm
Wheelbase
6350 mm
Tiltable cabin
Yes
Brakes
Drum Brakes
Front Suspension
Multi Leaf Spring Shock Absorbers - Double acting
Rear Suspension
Multi Leaf Spring withHelper Spring
Parking brakes
Yes
Seat Type
Standard
Tyre Size
12.00R22.5
Axle Layout
6x4
Operation
Power
Tilt
Standard
Engine
Diesel 6 cylinder , Common Rail Turbocharged with Intercooler
Fuel Type
Diesel
Displacement
7790 cc
Max Output hp (kW) @ rpm
280 bhp (206kW) @ 2,400 rpm
Max Torque Nm (Kgm) @ rpm
882 hp (90 kW) @ 1,450 rpm
